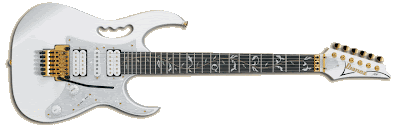

Ibanez JEM7V


SPECS
Neck Material: 5pc Maple/ Walnut
Neck Type: JEM Prestige
Body: Alder body
Frets: 6105 frets
Fingerboard: Rosewood
Inlay: Pearl/ Abalone Vine inlay
Bridge: Edge bridge
NeckPU: DiMarzio® Evolution® DP158
MiddlePU: DiMarzio® Evolution® DPS1
BridgePU: DiMarzio® Evolution® DP159
HW Color: GD
Finishes: WH
FEATURES

The Tree of Life inlay is a signature feature of the JEM's storied past.

The JEM's groundbreaking Lion's Claw tremolo cavity allows pitches to be radically raised or lowered without obstruction.

One of the most recognizable features on the fantastic JEM7V: Steve Vai's signature monkey grip. Crank your amp up, grab that baby and hold on for dear life.

Steve Vai's Signature JEM7V features DiMarzio® Evolution® humbuckers in the bridge and neck positions and a DiMarzio® Evolution® single coil in the middle position for a wide array of rock tones.

Back view of the JEW7V's 5pc maple/walnut bolt-on neck and alder body.
EDGE TREMOLO
Acclaimed Edge tremolo features knife-edge-like pivot surfaces for virtually friction free operation. Locking studs contribute to tuning stability
FEATURES
The low-profile design of the Edge tremolo includes fine tuners conveniently angled back to prevent right hand touches.

The Edge bridge features a stud lock in both studs for maximum tuning stability.
JEM/UV - STEVE VAI SERIES BASICS
  • Proudly made in Japan since their debut in 1987
  • Contoured body with 24-fret JEM Prestige neck provides easy access to all registers
  • Vai’s choice of specific DiMarzio pickups on models combined with Ibanez Split-5 wiring provide incredible tonal versatility
  • Lion's Claw tremolo cavity allows pitches to be radically raised or lowered
  • Steve Vai’s Japanese-made U777 Universe – the iconic solid-body seven-string – allows easy transition from 6- to 7-string techniques
NECK DIMENSIONS
Scale/Length648mm/25.5"
a: Width at Nut43mm
b: Width Last Fret56mm
c: Thickness 1st Fret19mm
d: Thickness 12th Fret21mm
Radius430mm
PICKUPS
Bridge Pickup
Name:DiMarzio® Evolution®
Model No:DP159
Construction:Humbucking
Magnet:Ceramic
Description:Tight, aggressive and louder. Wide range of overtones.

Middle Pickup
Name:DiMarzio® Evolution®
Model No:DPS1
Construction:Single Coil
Magnet:Ceramic
Description:Bright, clean tone.

Neck Pickup
Name:DiMarzio® Evolution®
Model No:DP158
Construction:Humbucking
Magnet:Ceramic
Description:Calibrated to DP159, fat punchy and loud. Designed for Steve Vai.
