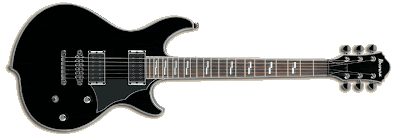

Ibanez DN500K

SPECS

Neck Material:	Sapele
Neck Type:	DN set-in
Body:	Sapele
Frets:	Medium frets
Fingerboard:	Bound Rosewood
Inlay:	DN Block
Bridge:	Tight Tune bridge
NeckPU:	CAP PP1-N
BridgePU:	CAP PP1-B
HW Color:	CK
Finishes:	BK, WH

FEATURES

	Solid as a rock, the Tight-Tune bridge and tailpiece were designed to lock down securely and prevent any kind of wobble or movement. Each saddle is locked into the base plate, and the bridge is anchored by stud bolts into the guitar body. Studs are also locked onto the base plate for maximum transfer of string vibration to the body.
	PP1 neck and bridge pickups: the tube pole-piece construction offers quick response, sparkling clarity and added harmonics for a humbucker sound.
	The Sapele wood of the DN500K's neck and body offers powerful sound and long sustain.
	Coil Tap push-pull switch for added pickup tonal variation.

DN SERIES BASICS

• Sapele wood body and set-in neck
• Bound Rosewood fretboard with DN block inlay
• Tight-Tune Bridge
• CAP-PP1 pickups with tube pole-piece construction for a humbucker sound

FINISHES

BLACK

WHITE

NECK DIMENSIONS

Scale/Length 628mm/24.75" a: Width at Nut 43mm b: Width Last Fret 57mm c: Thickness 1st Fret 20mm d: Thickness 12th Fret 22.5mm Radius 305mm

PICKUPS

Bridge Pickup
Name:	CAP PP1-B
Model No:	CAP PP1-B
Construction:	Humbucking
Magnet:	Ceramic
Description:	Tube construction of the pole-piece provides quick response, clarity and added harmonics
Neck Pickup
Name:	CAP PP1-N
Model No:	CAP PP1-N
Construction:	Humbucking
Magnet:	Alnico
Description:	Tube construction of the pole-piece provides quick response, clarity and added harmonics.

SWITCHING SYSTEM
