2011-03-23

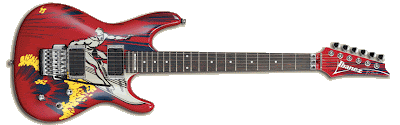

Ibanez JS20S


SPECS
Neck Material: Maple
Neck Type: JS
Body: Basswood body
Frets: Medium frets
Fingerboard: Rosewood
Inlay: Pearl dot inlay
Bridge: Edge III bridge
NeckPU: AH1
BridgePU: AH2
HW Color: CH
FEATURES
Hard shell case for the JS20S - close up detail.
The JS20S comes with signature Satriani strap and guitar picks. Exclusive for USA market.
Back view of JS20S's maple JS neck and basswood body.
The JS20S features the powerful combination of a AH1 neck pickup and a AH2 bridge pickup for an astounding array of hard rocking tones.
The JS20S features the incredible Edge III bridge, allowing a wide range of outrageous trem effects while staying in tune.
The JS20S's headstock, with its locking nut and Silver Surfer graphics.
The JS20S features a fast maple JS neck with a rosewood fingerboard.
EDGE III TREMOLO
The new Edge III is similar in construction and feel to the original Edge locking trem; however, it also features lower profile fine-tuners inspired by the Lo-PRO Edge and massive new-design saddles.
FEATURES
The Edge III features two screws in the arm pocket, which allow easy adjustment of the arm height and torque.
In the last two decades, no other guitar maker besides Ibanez has done so much to advance the art and science of the tremolo. The Edge III represents the next phase in locking tremolos.
JS - JOE SATRIANI SERIES BASICS
  • JSBDG, JS20TH, JS2400, JS1600, JS1200 and JS1000 are precision-made in Japan
  • Select JS models feature high-pass filter on volume pot for maintaining highs at low volumes
  • All models feature coil tapping on both neck and bridge pickups
  • Edge III (JS100) offers the great feel of the original Edge trem but is lower profile for increased comfort
  • JS2400 is first 24-fret model
  • JS1600PSV offers the stylistic and sonic alternative of a mahogany body with a fixed bridge and locking tuners
  • NEW JS2400 is first 24-fret modelJSBDG "Black Dog" The rumors were true – after years of calls from the legions of Satriani faithful, Ibanez was going to offer a collector's edition of Joe's storied "Black Dog" electric guitar
  • JS20TH & JS20S 20th Anniversary Models – 20 Years of Surfing with Satch – Ibanez is proud to feature the Joe Satriani 20th Anniversary signature models, dressed to kill with a special 3D inlay of the Silver Surfer (JS20TH) on the guitar’s body
NECK DIMENSIONS
Scale/Length648mm/25.5"
a: Width at Nut42mm
b: Width Last Fret56mm
c: Thickness 1st Fret20mm
d: Thickness 12th Fret22.3mm
Radius250mm
PICKUPS
Bridge Pickup
Name:AXIS HUMBUCKER 2
Model No:AH2
Construction:Humbucking
Magnet:Alnico
Description:Full bass sound. Alnico-5 magnet provides excellent clarity in harmonics and individual notes.
Neck Pickup
Name:AXIS HUMBUCKER 1
Model No:AH1
Construction:Humbucking
Magnet:Ceramic
Description:Very responsive and full sounding; medium output with lots of character. Excellent for chording.
