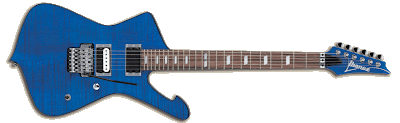

Ibanez STM2


SPECS
Neck Material: 5pc Maple/ Walnut
Neck Type: STM thru-neck
Body: Mahogany body/ Flamed Maple top
Frets: Jumbo frets
Fingerboard: Bound Rosewood
Inlay: Angled block inlay
Bridge: Edge III bridge
NeckPU: DiMarzio® Evolution® DP158
BridgePU: DiMarzio® Evolution® DP159
HW Color: CH
Finishes: SPB
EDGE III TREMOLO
The new Edge III is similar in construction and feel to the original Edge locking trem; however, it also features lower profile fine-tuners inspired by the Lo-PRO Edge and massive new-design saddles.
FEATURES
The Edge III features two screws in the arm pocket, which allow easy adjustment of the arm height and torque.

In the last two decades, no other guitar maker besides Ibanez has done so much to advance the art and science of the tremolo. The Edge III represents the next phase in locking tremolos.
STM - SAM TOTMAN SERIES BASICS
  • The classic Iceman shape, but with Edge III tremolo and thru-neck construction
  • DiMarzio® Evolution pickups feature more harmonic overtones than standard humbuckers to cut though any mix, live or recording
  • Simple and straight one volume control
NECK DIMENSIONS
Scale/Length648mm/25.5"
a: Width at Nut43mm
b: Width Last Fret58mm
c: Thickness 1st Fret19mm
d: Thickness 12th Fret21mm
Radius400mm
PICKUPS
Bridge Pickup
Name:DiMarzio® Evolution®
Model No:DP159
Construction:Humbucking
Magnet:Ceramic
Description:Tight, aggressive and louder. Wide range of overtones.

Neck Pickup
Name:DiMarzio® Evolution®
Model No:DP158
Construction:Humbucking
Magnet:Ceramic
Description:Calibrated to DP159, fat punchy and loud. Designed for Steve Vai.
