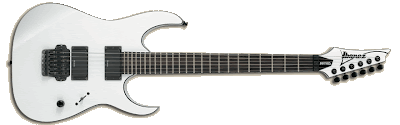

Ibanez MTM2

SPECS

Neck Material:	5pc Maple/ Walnut
Neck Type:	MTM
Body:	Mahogany body
Frets:	Jumbo frets
Fingerboard:	Bound Rosewood
Inlay:	n/a
Bridge:	Fixed Edge III bridge
NeckPU:	Duncan® HB-105MT
BridgePU:	Duncan® HB-105MT
HW Color:	BK
Finishes:	WH, BK

FEATURES

	Fixed, mounted and ready for onslaught: the FX Edge III bridge on the MTM2.
	MTM2 guitars are equipped with Duncan® HB-105MT (H) neck and bridge active pickups.

MTM - MICK THOMSON SERIES BASICS

• MTM1’s 5pc thru-neck and mahogany body pump out full, fat tone with strong sustain
• Edge FX bridges offers doubling-locking stability with fixed bridge simplicity and sustain
• MTM2 provides the Mick Thomson signature design in a powerful, more affordable package
• Factory equipped with heavy strings tuned to C# tuning with a dropped B: 1 - C#, 2 - G#, 3 - E, 4 - B, 5 - F#, 6 - B

FINISHES

WHITE

BLACK

NECK DIMENSIONS

Scale/Length 648mm/25.5" a: Width at Nut 43mm b: Width Last Fret 58mm c: Thickness 1st Fret 19mm d: Thickness 12th Fret 21mm Radius 400mm

PICKUPS

Bridge Pickup
Name:	Duncan® HB-105MT
Model No:	HB-105MT
Construction:	Humbucking
Magnet:	Alnico
Description:	Active Humbeucker for aggressive playing styles.More tighter bottom tone.
Neck Pickup
Name:	Duncan® HB-105MT
Model No:	HB-105MT
Construction:	Humbucking
Magnet:	Alnico
Description:	Active Humbeucker for aggressive playing styles.More tighter bottom tone.

SWITCHING SYSTEM
