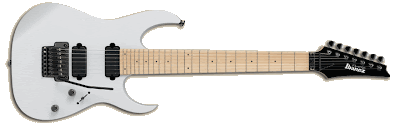

Ibanez RG1527M

SPECS

Neck Material:	5pc Maple/ Wenge
Neck Type:	Wizard-7 Prestige
Body:	Basswood body
Frets:	Jumbo frets
Fingerboard:	Maple
Inlay:	Black dot inlay
Bridge:	Edge Pro 7 bridge
NeckPU:	V77
BridgePU:	V87
HW Color:	CK
Finishes:	GW

FEATURES

	The new RG1527MGW's ripping tones come from a V77 pickup in the neck position and a V87 in the bridge position.
	The RG1527MGW features a 5-piece maple/wenge Wizard-7 Prestige neck with maple fretboard.

EDGE-PRO TREMOLO

In the last two decades, no other guitar maker besides Ibanez has done so much to advance the art and science of the tremolo. The Edge-PRO represents the next phase in locking tremolos.

FEATURES (click to enlarge)

	To avoid the problem of string holder blocks getting lost during string changes, the Edge-PRO’s sliding string holders are actually part of the bridge and won’t drop from the saddle unit.
	With the Edge-PRO design, there’s no need to cut off the ball end of your strings when installing new strings.
	The Edge-PRO features a unique Sound Metal Chip on each saddle which helps increase sustain right at the most critical area, the intonation point.

RG PRESTIGE SERIES BASICS

• Precision-made in Japan by Ibanez’s finest luthiers
• Super Wizard neck features the legendary ultra-thin, ultra-flat Wizard 17mm neck dimensions, but with 5-pc construction and KTS™ Titanium reinforcement rods for even greater strength (RG3000 series models)
• RG Prestige fixed bridge models feature Tight-End bridge for maximum string vibration
• RG3000 series models feature genuine made-in-USA DiMarzio® pickups
• 6-, 7-, and 8-string models available
• Includes deluxe Prestige case (most models)

NECK DIMENSIONS

Scale/Length 648mm/25.5" a: Width at Nut 48mm b: Width Last Fret 68mm c: Thickness 1st Fret 19mm d: Thickness 12th Fret 21mm Radius 430mm

PICKUPS

Bridge Pickup
Name:	VINTAGE 87
Model No:	V87
Construction:	Humbucking
Magnet:	Ceramic
Description:	Seven-string version of V8 pickup.
Neck Pickup
Name:	VINTAGE 77
Model No:	V77
Construction:	Humbucking
Magnet:	Ceramic
Description:	Seven-string version of V7 pickup.

SWITCHING SYSTEM
