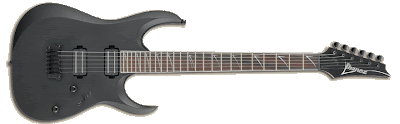

Ibanez RGD321

SPECS

Neck Material:	3pc Maple
Neck Type:	WIzard III (26.5")
Body:	Basswood body
Frets:	Jumbo frets
Fingerboard:	Bound Rosewood
Inlay:	RGD special inlay
Bridge:	Gibraltar Standard bridge
NeckPU:	VK1-DT
BridgePU:	VK2-DT
HW Color:	BK
Finishes:	BKF

FEATURES

	The Gibraltar Standard bridge gives you increased stability and longer sustain.
	The VK1-DT neck and VK2-DT bridge pick ups are designed to match for down tuning.

GIBRALTAR STANDARD BRIDGE

Lower profile Gibralatar Standard Bridge features maximum playing comfort, stable tuning stability & long sustain.

FEATURES

	Each saddle is designed with a comfortable smooth top.
	The Gibraltar Standard Bridge combines rock solid construction with fine tuning capability.
	The low-profile design of the Gibraltar Standard Bridge offers maximum playing comfort.

RGD SERIES BASICS

• Fast, flat, and thin Wizard III necks
• Extra-long 26.5” neck scales
• Trem models feature Edge-Zero II bridge w/ZPS3Fe
• Gibraltar Standard bridge on fixed models offers smooth playing comfort and maximum string vibration
• CAP VK1/VK2 custom designed pickups for down tuning
• Extra-deep scoop cut on lower horn for high fret access
• Full-step down factory tuning: D-G-C-F-A-D (6th to 1st strings)
• RGD7321 is 7-string model, tuned A-D-G-C-F-A-D (7th to 1st strings)

NECK DIMENSIONS

Scale/Length 672mm/26.5" a: Width at Nut 43mm b: Width Last Fret 58mm c: Thickness 1st Fret 19mm d: Thickness 12th Fret 21mm Radius 400mm

PICKUPS

Bridge Pickup
Name:	VK2-Down Tunz
Model No:	VK2-DT
Construction:	Humbucking
Magnet:	Alnico
Description:	High output yet clarity in the high end with V bar polepieces.
Neck Pickup
Name:	VK1-Down Tunz
Model No:	VK1-DT
Construction:	Humbucking
Magnet:	Alnico
Description:	High output yet clarity in the high end with V bar polepieces.

SWITCHING SYSTEM
