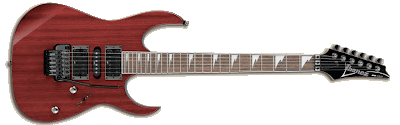

Ibanez RG470MH

SPECS

Neck Material:	3pc Maple
Neck Type:	WIzard III
Body:	Mahogany body
Frets:	Jumbo frets
Fingerboard:	Bound Rosewood
Inlay:	Sharktooth inlay
Bridge:	Edge Zero II bridge w/ZPS3Fe
NeckPU:	INF1
MiddlePU:	INFS1
BridgePU:	INF2
HW Color:	CK
Finishes:	BB, MOL

EDGE-ZERO II TREMOLO

The Edge-Zero II, Ibanez's newest generation of knife edge tremolos, deploys all of the unique features of the ZR trem. Locking studs contribute to tuning stability.

RG TREMOLO SERIES BASICS

• Edge Zero II trem with ZPS gives maximum tuning stability
• Fast, flat, and thin Wizard III necks
• Most models include INF humbucker pickups with additional single coil
• Left-hand and 7-string models available

FINISHES

BLACKBERRY

MAHOGANY OIL

NECK DIMENSIONS

Scale/Length 648mm/25.5" a: Width at Nut 43mm b: Width Last Fret 58mm c: Thickness 1st Fret 19mm d: Thickness 12th Fret 21mm Radius 400mm

PICKUPS

Bridge Pickup
Name:	INFINITY 2
Model No:	INF2
Construction:	Humbucking
Magnet:	Alnico
Description:	Enhanced midrange output. Alnico-5 magnet for individual string clarity. Excellent dynamics.
Middle Pickup
Name:	INFINITY SINGLE1
Model No:	INFS1
Construction:	Single Coil
Magnet:	Alnico
Description:	Designed to work with humbuckers in the split position.
Neck Pickup
Name:	INFINITY 1
Model No:	INF1
Construction:	Humbucking
Magnet:	Ceramic
Description:	Versatile and responsive with warm classic tone and added output.

SWITCHING SYSTEM
