Ibanez RGD320


SPECS
Neck Material: 3pc Maple
Neck Type: WIzard III (26.5")
Body: Basswood body
Frets: Jumbo frets
Fingerboard: Bound Rosewood
Inlay: RGD special inlay
Bridge: Edge Zero II bridge w/ZPS3Fe on BK & Edge III bridge on MGS, WH models
NeckPU: VK1-DT
BridgePU: VK2-DT
HW Color: BK
Finishes: BK, MGS, WH
FEATURES

The Edge III bridge/tremolo design provides even more stability and strength under the most demanding playing conditions.

RGD320's feature VK Down Tunz pickups for faster, easier and truer down tuning. VK1-DT(at neck position), and VK2-DT(at bridge position).

A 26.5" extra long scale neck, with factory-set whole step down tuning (1D, 2A, 3F, 4C, 5G, 6D).
EDGE III TREMOLO
The new Edge III is similar in construction and feel to the original Edge locking trem; however, it also features lower profile fine-tuners inspired by the Lo-PRO Edge and massive new-design saddles.


FEATURES


The Edge III features two screws in the arm pocket, which allow easy adjustment of the arm height and torque.

In the last two decades, no other guitar maker besides Ibanez has done so much to advance the art and science of the tremolo. The Edge III represents the next phase in locking tremolos.
RGD SERIES BASICS
  • Fast, flat, and thin Wizard III necks
  • Extra-long 26.5” neck scales
  • Trem models feature Edge-Zero II bridge w/ZPS3Fe
  • Gibraltar Standard bridge on fixed models offers smooth playing comfort and maximum string vibration
  • CAP VK1/VK2 custom designed pickups for down tuning
  • Extra-deep scoop cut on lower horn for high fret access
  • Full-step down factory tuning: D-G-C-F-A-D (6th to 1st strings)
  • RGD7321 is 7-string model, tuned A-D-G-C-F-A-D (7th to 1st strings)

FINISHES

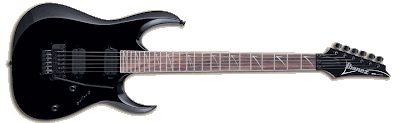

RGD320BK
BLACK
RGD320MGS
METALLIC GRAY SUNBURST
RGD320WH
WHITE

NECK DIMENSIONS
Scale/Length672mm/26.5"
a:Width at Nut43mm
b:Width Last Fret58mm
c:Thickness 1st Fret19mm
d:Thickness 12th Fret21mm
Radius400mm
PICKUPS
Bridge Pickup
Name:VK2-Down Tunz
Model No:VK2-DT
Construction:Humbucking
Magnet:Alnico
Description:High output yet clarity in the high end with V bar polepieces.
Neck Pickup
Name:VK1-Down Tunz
Model No:VK1-DT
Construction:Humbucking
Magnet:Alnico
Description:High output yet clarity in the high end with V bar polepieces.
SWITCHING SYSTEM
