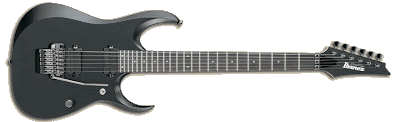

Ibanez RGD2120Z


SPECS
Neck Material: 5pc Maple/ Walnut
Neck Type: Wizard Prestige (26.5")
Body: Basswood body
Frets: Jumbo frets
Fingerboard: Rosewood
Inlay: Pearl dot inlay
Bridge: Edge Zero bridge w/ZPS3
NeckPU: V7 Custom
BridgePU: V8 Custom
HW Color: CK
Finishes: ISH
FEATURES

V7/V8 Custom, humbucker pickups. V7 (neck) provides smooth and dynamic tone with warm mid-range. V8 (bridge) gives rich, harmonic tone with clarity in low-end.

Deep scoop cuts at horns for extra playability/easier upper fret access.
EDGE-ZERO TREMOLO
The Edge-Zero, Ibanez's newest generation of knife edge tremolos, deploys all of the unique features of the ZR trem. Locking studs contribute to tuning stability.

FEATURES


Edge-Zero trems are standard on all RG Prestige, RG3000 and RGA Prestige models.

Back view of the Edge Zero bridge with ZPS3 string system which allows radical trem effects with flawless tuning accuracy.

Just unscrew the built-in intonation adjustment tool from the base and screw it into the bottom of each saddle for quick adjustments.

The locking bolt is offset from the center of the saddle, which allows easy access to the bolt without loosening the strings.
RGD PRESTIGE SERIES BASICS
  • The lighting-fast Prestige Wizard HP necks are ultra-smooth, thin and strong, including KTS™ Titanium reinforcement
  • Precision-made in Japan with Prestige craftsmanship by Ibanez’s finest luthiers
  • Extra-long 26.5” neck scales
  • Extra-deep scoop cut on lower horn for high fret access
  • Edge-Zero bridge/tremolo with ZPS3 system for tuning stability
  • V7/V8 pickups output full and deep low-end and more
  • Full-step down factory tuning: D-G-C-F-A-D (6th to 1st strings)
  • RGD2127 is 7-string model, tuned A-D-G-C-F-A-D (7th to 1st strings)

NECK DIMENSIONS
Scale/Length 672mm/26.5"
a: Width at Nut 43mm
b: Width Last Fret 58mm
c: Thickness 1st Fret 18mm
d: Thickness 12th Fret 20mm
Radius 430mm
PICKUPS
Bridge Pickup
Name: V8 Custom
Model No: V8 Custom
Construction: Humbucking
Magnet: Alnico
Description: Rich, harmonic tone with clarity in low-end.

Neck Pickup
Name: V7 Custom
Model No: V7 Custom
Construction: Humbucking
Magnet: Ceramic
Description: Smooth and dynamic tone with warm mid-range.
